Winzer

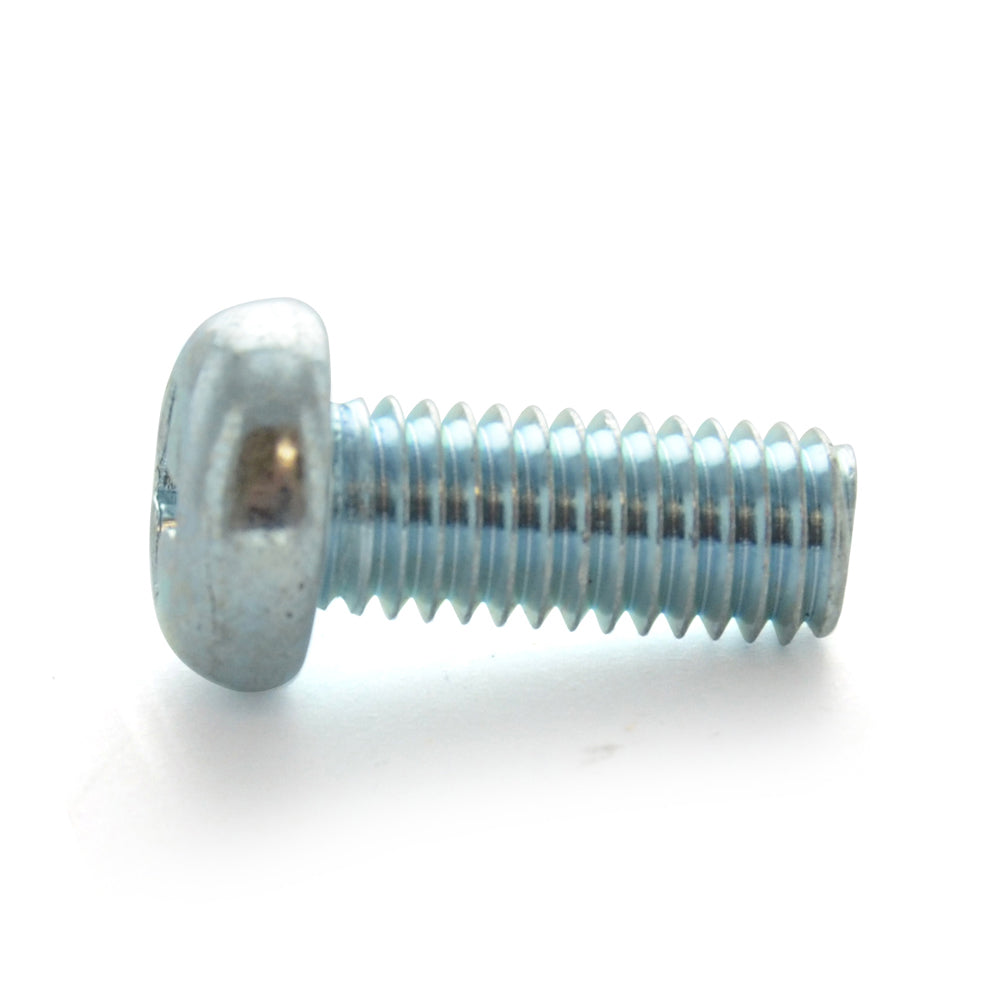

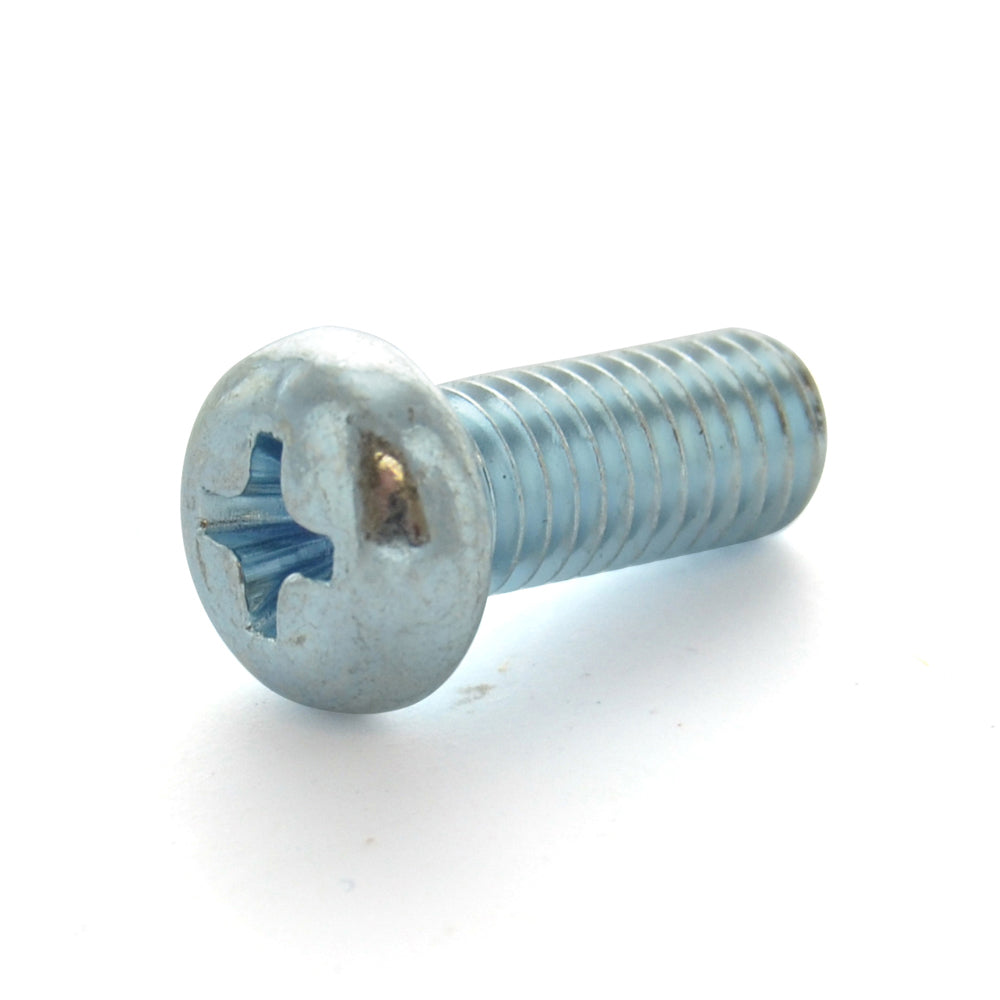

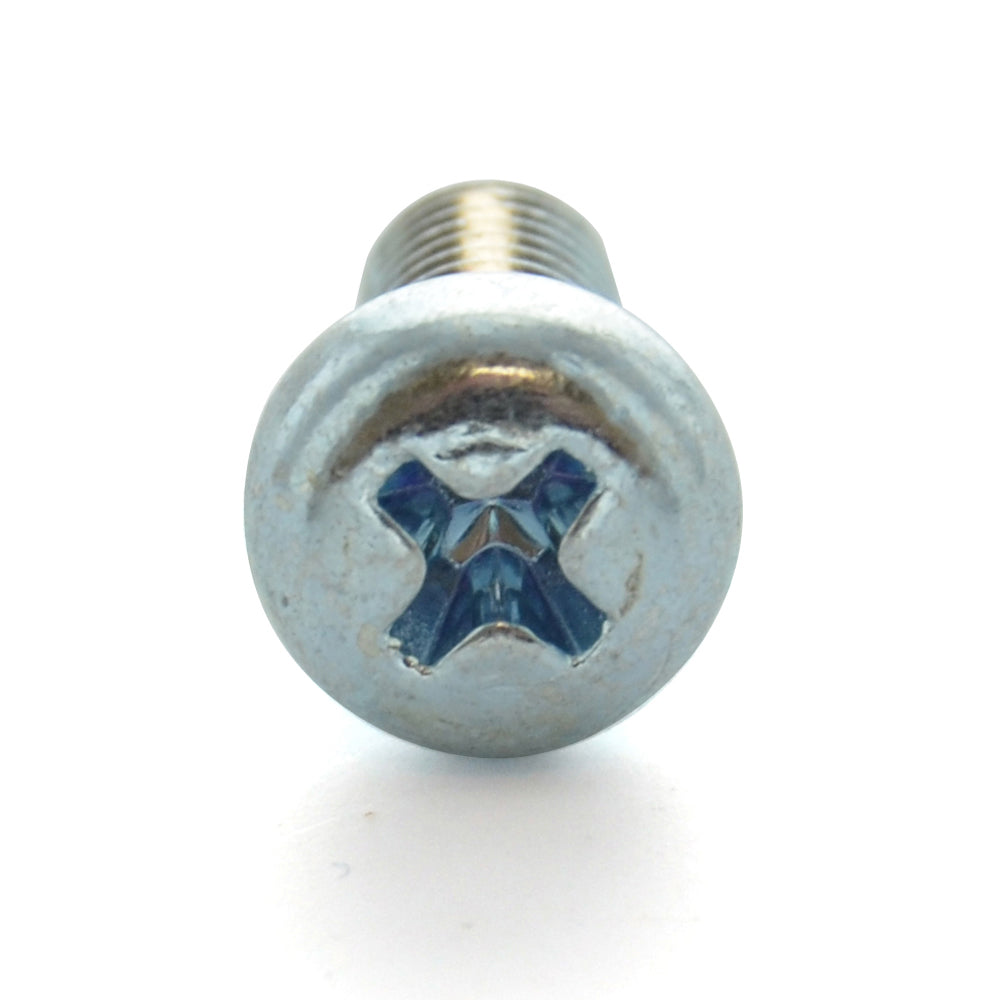

M6 x 1 x 100 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Pan Head Reduced Machine Screw

Item 047.6.100

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Hardness: HRB 71 - 99.5
  • Drive Type: Phillips
  • Finish: Zinc
  • Grade: Class 4.8
  • Head Diameter: 9.8 - 10.5 mm
  • Head Height: 3.70 - 4.10 mm
  • Head Type: Pan
  • Industry Standard: JIS B-1111
  • Item: Reduced Machine Screw
  • Length: 100 mm
  • Material: Steel
  • Measurement: Metric
  • Origin: Imported
  • Recess Diameter: 3 mm
  • Recess Penetration Gagging Depth: 2.26 - 2.86 mm
  • Specification: JIS B-1111
  • Tensile Strength : 60900 psi
  • Thread Length: 100 mm
  • Thread Type: Coarse
  • Type: Full Threaded
  • Yield Strength: 49300 Psi

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M6
Drive Type Phillips
Finish Zinc
Head Style Pan
Length 100 mm
Measurement Metric
Thread Type Coarse
