Winzer

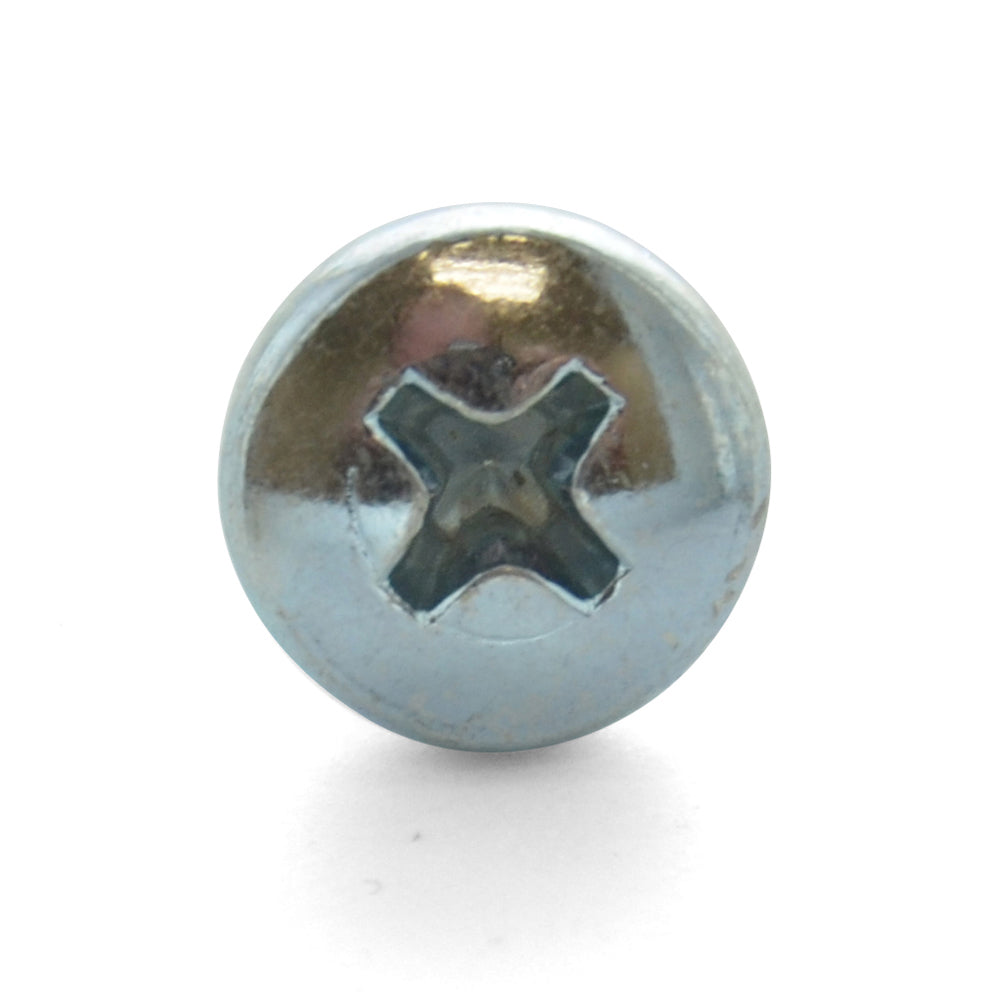

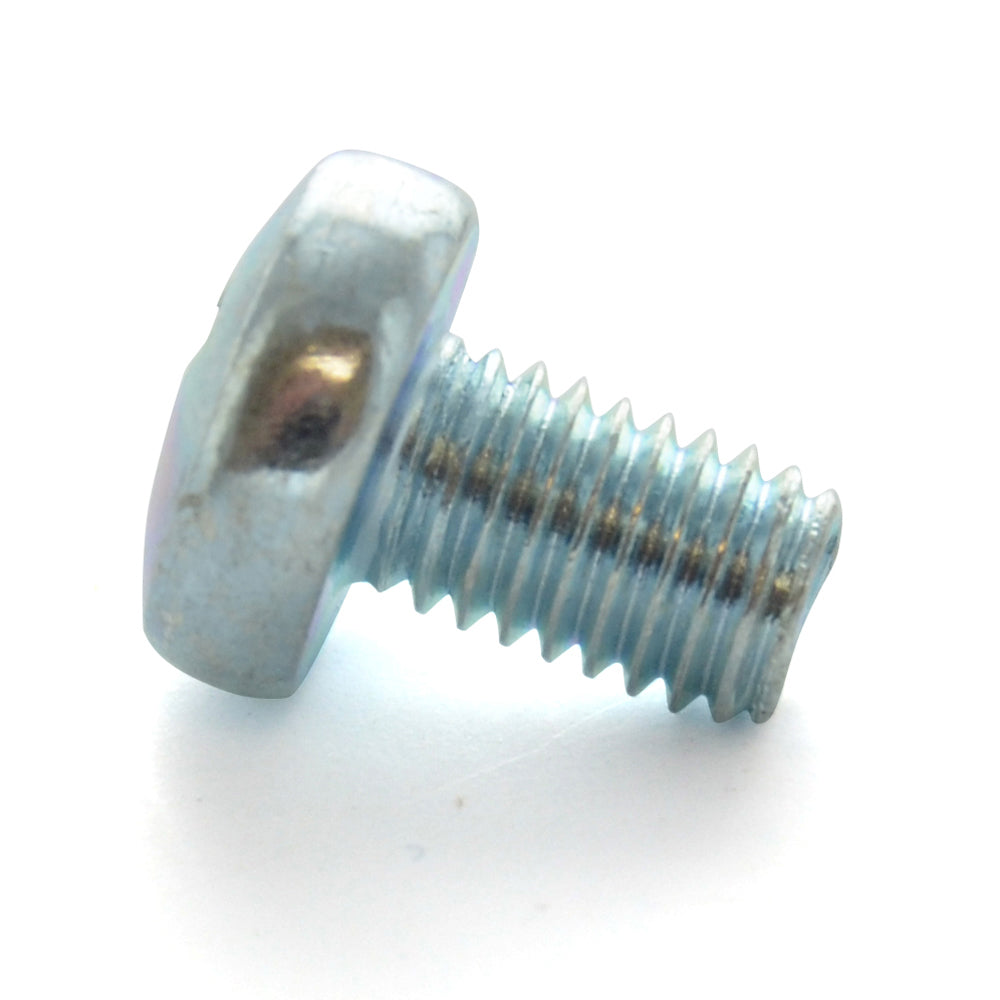

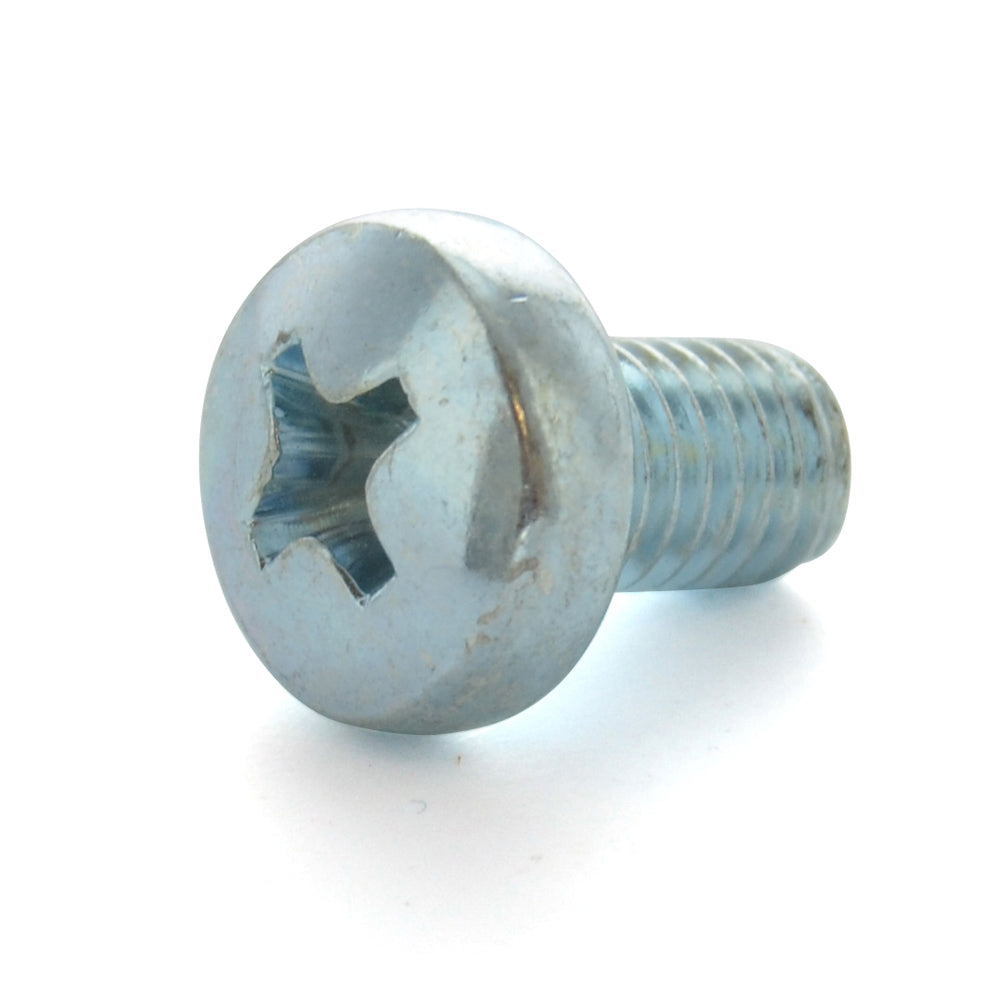

M6 x 1 x 14 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Pan Head Machine Screw

Item 046.6.14

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Diameter: M6
  • Drive Type: Phillips
  • Finish: Zinc
  • Head Diameter: 11.57 - 12 mm
  • Head Height: 4.45 - 4.75 mm
  • Head Type: Pan
  • Industry Standard: DIN 7985
  • Item: 0.032 Inch
  • Length: 14 mm
  • Material: Steel
  • Measurement: Metric
  • Origin: Imported
  • Recess Diameter: 3 mm
  • Recess Penetration Gagging Depth: 3.03 - 3.53 mm
  • Specification: DIN 7985
  • Tensile Strength : 72500 psi
  • Thread Length: 14 mm
  • Thread Type: Coarse
  • Type: Full Threaded
  • Yield Strength: 30450 Psi

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M6
Drive Type Phillips
Finish Zinc
Head Style Pan
Length 14 mm
Measurement Metric
Thread Type Coarse
