Winzer

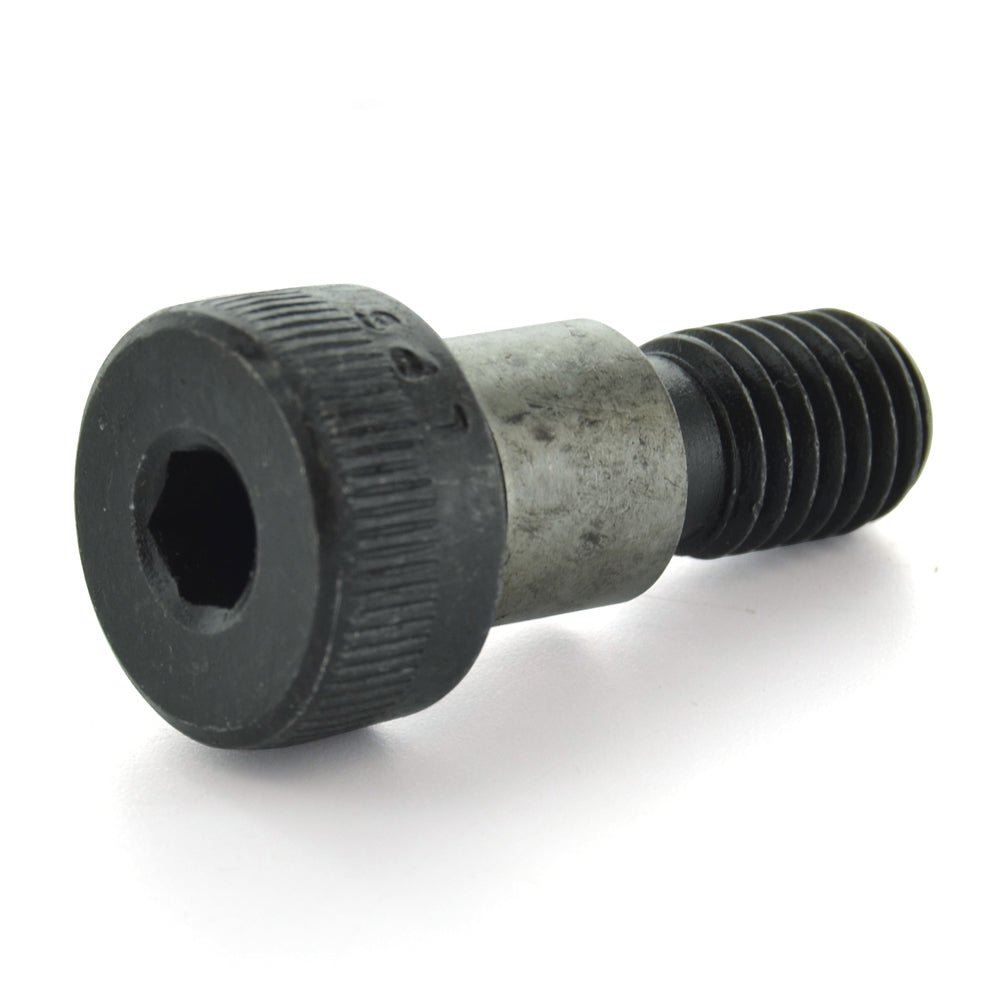

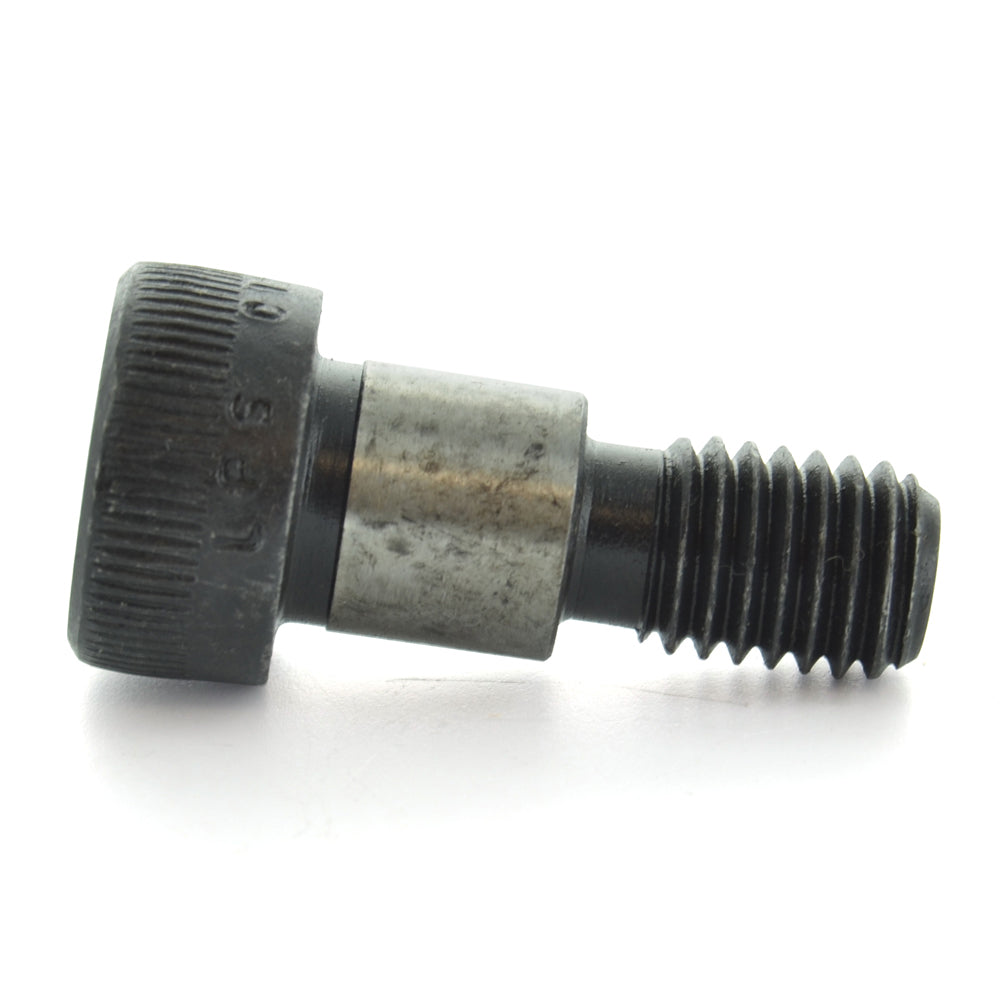

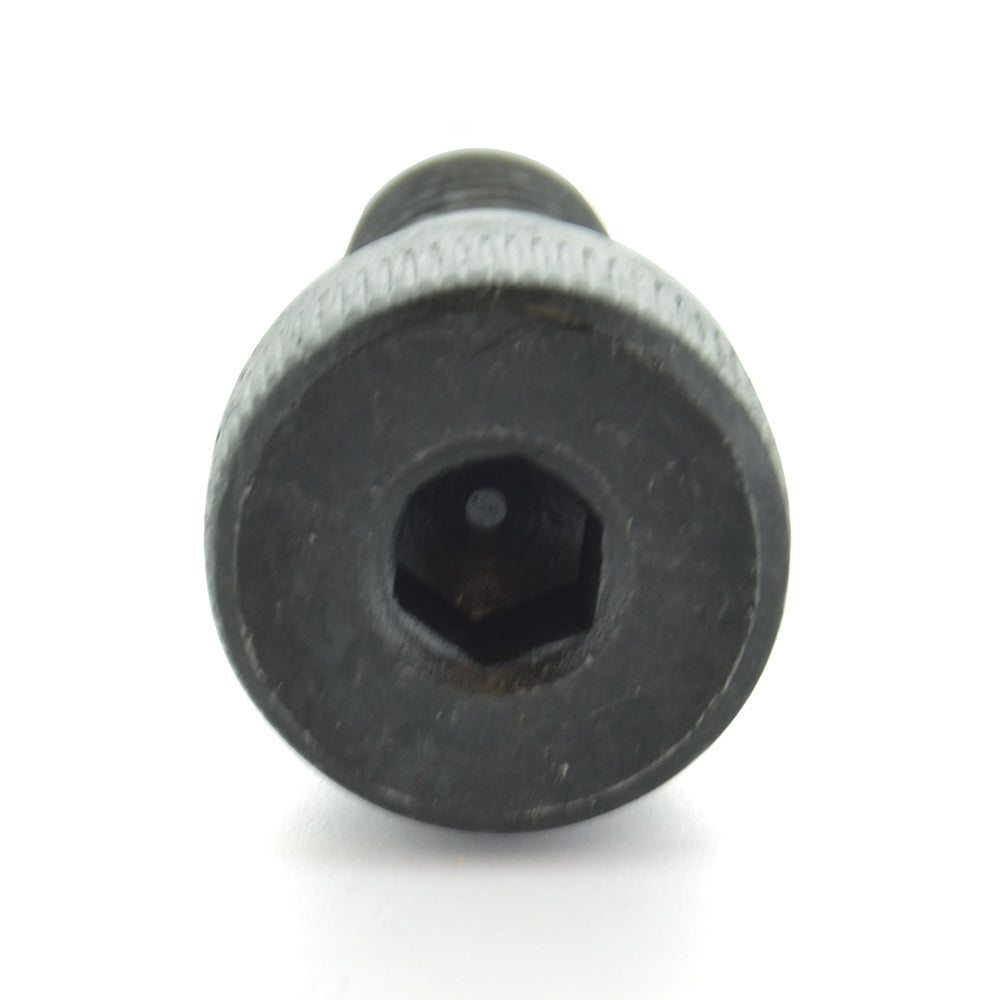

M8 x 16 Mm Black Oxide Class 12.9 Socket Head Shoulder Screw

Item 081.8.16

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.

  • Origin: Imported
  • Drive Type: Internal Hex
  • Finish: Black Oxide
  • Grade: Class 12.9
  • Head Diameter: 12.73 - 13.27 mm
  • Head Height: 5.32 - 5.50 mm
  • Head Style: Socket
  • Industry Standard: ISO 7379
  • Item: Shoulder Screw
  • Key Size: 4 mm
  • Material: Alloy Steel
  • Measurement: Metric
  • Origin: Imported
  • Proof Load: 141000 psi
  • Shoulder Diameter: M8
  • Shoulder Length: 16 mm
  • Specification: ISO 7379 ISO 898-1
  • Tensile Strength : 177000 psi
  • Thread Diameter: M6 x 1
  • Thread Length: 11.25 mm
  • Thread Type: Coarse

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M8
Drive Type Internal Hex
Finish Black Oxide
Head Style Socket
Length 16 mm
Measurement Metric
Origin IMPORT
Thread Type Coarse
