Winzer

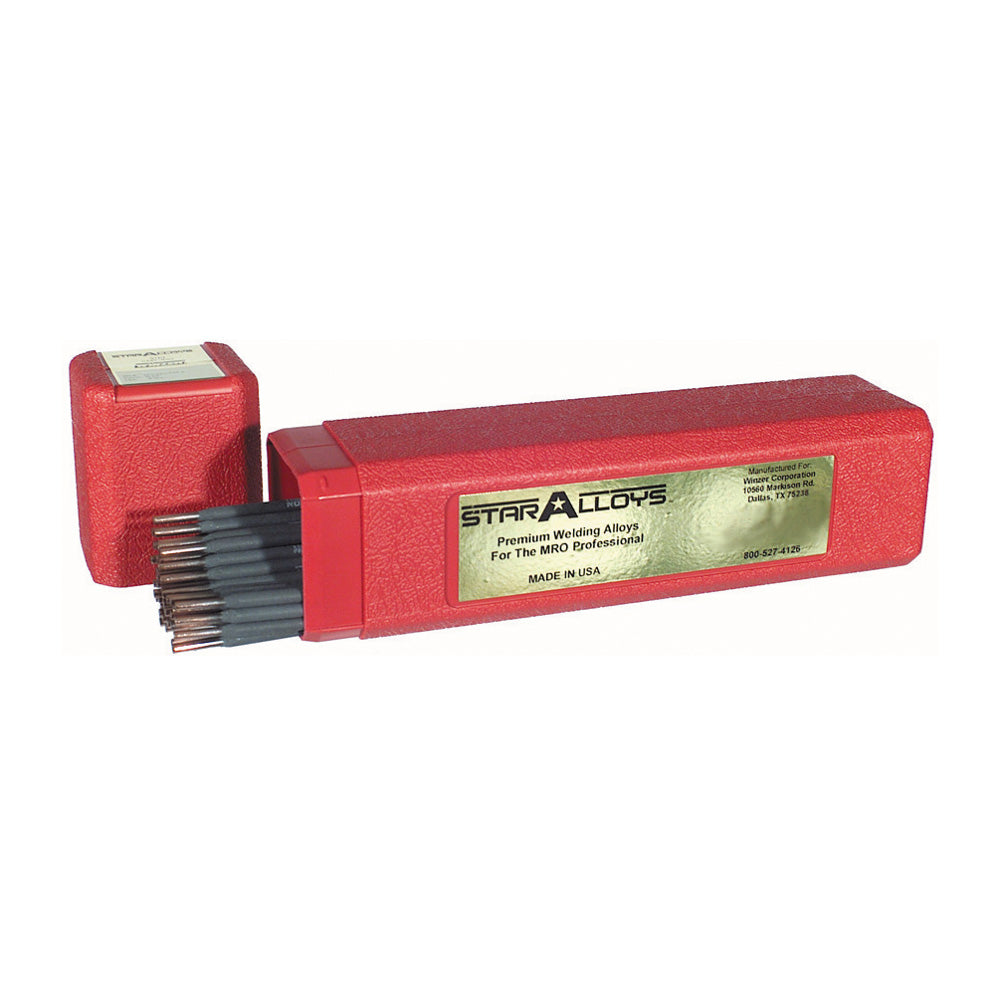

Star Alloys 1/8 Inch X 14 Inch 51Ci Cast Iron Electrode - 5 Lb

Item 686.640.18.5

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

The 51CI Cast Iron electrode is one of a kind heavily copper clad "tri-metal" cored that easily welds even dirty and greasy cast irons.

  • One of a kind heavily copper clad “Tri-metal” cored cast iron electrode
  • High efficiency weld metal transfer totally eliminates electrode overheating
  • Proprietary copper-nickel-iron deposit chemistry yields the ultimate combination of softness ductility and tensile strength for exceptional machinability
  • Easily welds even dirty and greasy cast iron. Saves prep time. • High deposition rate creates an extremely narrow heat affected zone • Suitable for all weldable cast irons that require post weld machining
  • Welding Positions: flat vertical up horizontal overhead
  • Recommended Current: DC reverse (+) or AC
  • Amperage Settings (min/max): 3/32” (50/70); 1/8” (70/100); 5/32” (100/130)
  • Tensile Strength: 77 000 psi
  • Yield Strength: 54 000 psi
  • Elongation: 30%
  • Hardness: Rockwell B84-88; Brinell 176; Vickers 185
  • Work Hardness: Rockwell C41-54; Brinell 380-550 Vickers 400-580

Documents

Photographs are representational and may not be size accurate.

Key Specifications
Brand Star-Alloys
Length 14 Inch
Diameter 1/8 Inch
Color Dark Gray
Material Cast Iron
